Math word problems often pose significant challenges for elementary students due to their abstract language and hidden mathematical structures. However, research shows that visual models and manipulatives can dramatically improve students’ ability to decode, understand, and solve these problems. Rather than simply picturing a word problem’s story context, effective visual modeling helps students reveal the underlying mathematical relationships, transforming confusion into clarity and hesitation into confidence.
Why Visual Models Matter
When students encounter word problems, their first instinct is often to picture the scenario described. However, not all visual representations are equally helpful. Research by Hegarty and Kozhevnikov (1999) explains that there are two types of visuals students typically create: pictorial and schematic (visual-spatial) representations.
Pictorial representations involve detailed drawings of every element described in the problem, which can easily overwhelm or confuse students by including irrelevant details. (Imagine a detailed drawing of pigs and cows in a barn.)
On the other hand, schematic diagrams simplify the problem by showing only the critical mathematical relationships. These include clear visuals like bar models, number lines, or simple diagrams highlighting important numbers and operations. According to Van Garderen (2006), students who learn to use these simplified visual-spatial diagrams become more effective problem-solvers, especially for complex problems.
Further, Gersten et al. (2009) highlight the importance of visual models and manipulatives, such as counters or cubes, in bridging concrete experiences to abstract concepts. Manipulatives provide a hands-on way to understand abstract ideas, making math accessible for all learners, particularly those who struggle with abstract concepts.
Simply put, visual models matter because they help students clearly “see” the math. When students move from detailed pictures to simple diagrams, they can better focus on essential information, solve problems more effectively, and build lasting confidence in their mathematical abilities.
Bridging the Gap: The CRA Approach
The Concrete-Representational-Abstract (CRA) approach effectively guides students from hands-on experiences to abstract mathematical thinking. In the Concrete stage, students use physical manipulatives to explore math concepts. In the Representational stage, students create simple visual diagrams to represent these concepts. Finally, in the Abstract stage, students use numbers and symbols to formally express their mathematical reasoning. Visual models are key to bridging the gap between concrete experiences and abstract math, greatly boosting students’ confidence and understanding.
Now, let’s dive into specific types of visual models and explore how they can effectively represent different kinds of word problems. We’ll start by looking at visual models designed specifically for action-based problems, such as scenarios involving addition or subtraction actions.
Visualizing Addition and Subtraction with Open Number Lines
Action-based problems, like Add-To and Take-From scenarios, benefit significantly from visual modeling using open number lines. An open number line helps students clearly track the movement of numbers as they add or subtract, visually clarifying each step of the problem-solving process.

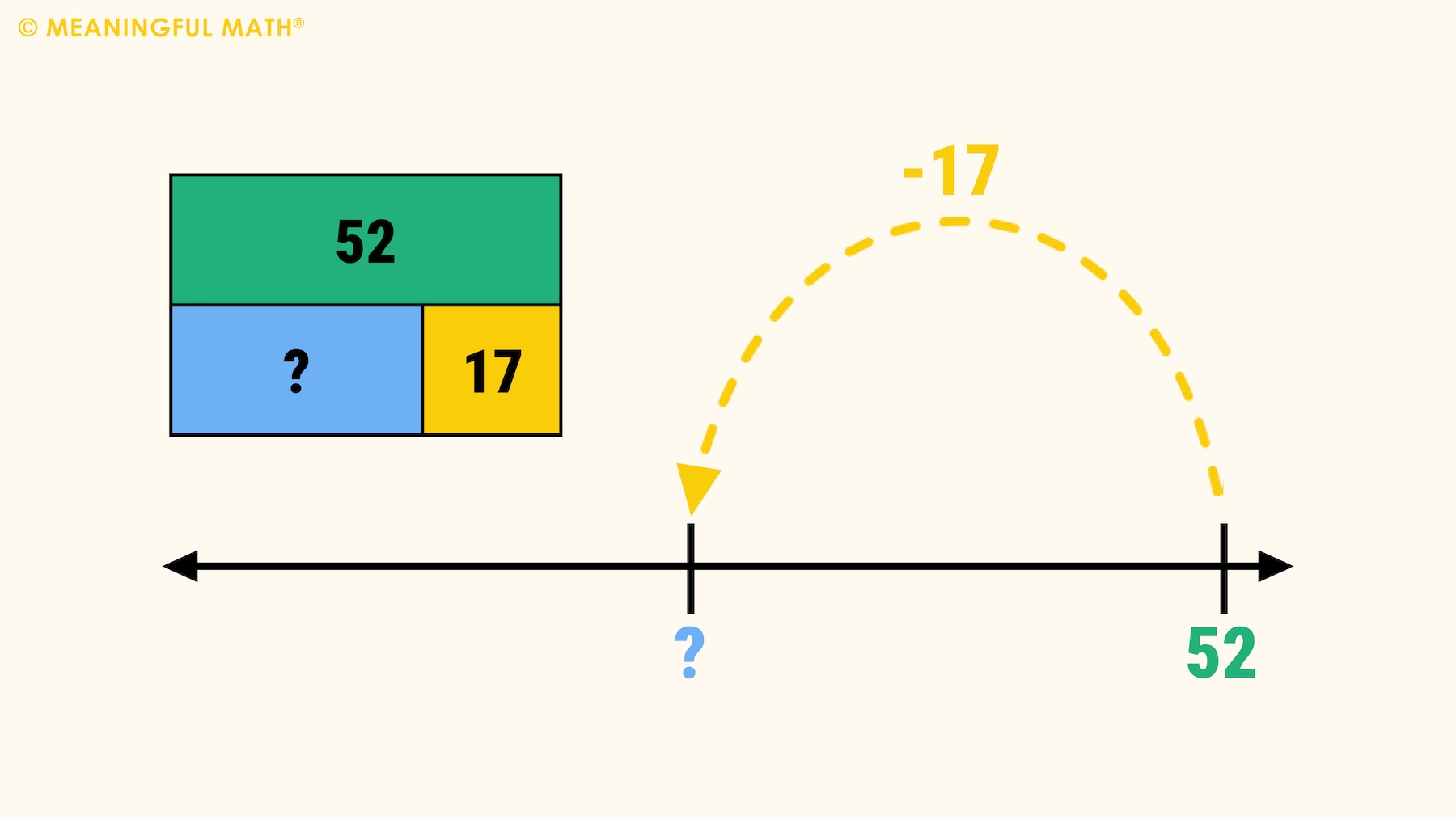

Example: Take-From, Result Unknown
Consider a story problem where the final amount, or the result, is unknown.
Malik had 52 football cards. He gave 17 cards to Caleb. How many does he have now?
To visually represent this, students begin by placing the number 52 on the right side of an open number line. Since Malik is giving cards away, students move left (backward) by 17 units, marking this jump clearly on the line. The landing point is unknown, visually representing the cards Malik has left. This clearly represents subtraction visually and connects to the abstract equation 52 – 17 = ▢.
Shifting the Unknown: Take-From, Change-Unknown
Now let’s examine how changing the unknown impacts the visual model:
Malik had 52 football cards. He gave some cards away and now has 35. How many cards did he give away?
In this scenario, students still place 52 on the right side of the number line, representing Malik’s starting quantity. However, this time the amount Malik gives away is unknown. Students mark 35 as the endpoint on the left side of the number line, clearly indicating that Malik now has fewer cards. The backward jump from 52 to 35 represents the unknown quantity. Although the story equation is 52 – ▢ = 35, students visually recognize they can also solve this by thinking in terms of addition (35 + ▢ = 52), highlighting the connection between subtraction and addition.
Shifting the Unknown: Start-Unknown Problem
Finally, consider a more challenging situation where the starting amount is unknown:
Malik had some football cards. He gave 17 away and now has 35. How many did he start with?
In this problem, students place an unknown point on the right side of the number line to represent Malik’s initial total. They move backward by 17 (representing the cards given away), landing at 35. This visual representation clearly connects to the story equation ▢ – 17 = 35. Yet, students see visually that the solution actually involves addition (35 + 17), as Malik’s starting amount must be the number of cards he ended up with plus those he gave away.
Using open number lines consistently across these varied scenarios provides a way for students to visually understand the action taking place, helping them clearly recognize and select the appropriate mathematical operation for each unique context.
Open number lines provide students with a visual pathway to understanding the actions within addition and subtraction story problems. Placing known and unknown quantities clearly on the number line is a way to directly visualize the relationships between numbers and better grasp what operation is needed to find a solution. This visual approach helps students transition from simple to more complex word problem types by reinforcing flexible mathematical thinking and clearly illustrating the connections between addition and subtraction.
Visualizing Comparisons with Bar Models
Comparison problems highlight relationships between two quantities, making them perfect for bar models. Bar models clearly show which amount is larger or smaller and the exact difference between them, simplifying complex comparisons visually.
Difference Unknown
Let’s start with an example where the difference between two quantities is unknown:
Malik has 52 football cards, and Caleb has 35 football cards. How many more cards does Malik have than Caleb?
To visually represent this, students first draw two horizontal bars, labeling Malik’s bar with 52 and Caleb’s bar with 35. Malik’s bar is drawn longer to visually represent the larger quantity. The empty space at the end of Caleb’s shorter bar shows the unknown difference. This makes it visually clear that the solution can be found by subtracting Caleb’s amount from Malik’s. Students then translate this visual into the equation: 52 – 35 = ▢.
Larger Amount Unknown
Now consider a scenario where the larger quantity is unknown:
Caleb has 35 football cards. Malik has 17 more cards than Caleb. How many cards does Malik have?
Here, students begin by drawing Caleb’s bar labeled clearly as 35. Then, they draw Malik’s bar directly above or below Caleb’s, making it longer by exactly 17 units. The additional length visually represents the extra cards Malik has. Malik’s total is the unknown quantity, clearly represented by visually combining Caleb’s 35 cards plus the additional 17 cards. Students can see that addition is the correct operation and match this visual representation directly with the equation: 35 + 17 = ▢.
Smaller Amount Unknown
Finally, let’s look at a scenario where the smaller quantity is unknown:
Malik has 52 football cards. He has 17 more cards than Caleb. How many cards does Caleb have?
In this case, students first draw Malik’s bar labeled clearly with 52. Then, they draw Caleb’s bar underneath or above it, shorter by exactly 17 units to show that he has fewer cards. Caleb’s total becomes visually clear as the unknown length, helping students quickly realize they can subtract the difference from Malik’s total, or add to the difference up to Malik’s total. Students then represent this visually clear relationship with the equations ▢ + 17 = 52 or 52 – 17 = ▢.
Bar models clearly show students how two quantities relate to each other, making comparison problems easier to understand. Students can quickly see what operation they might use to solve the problem by visually representing larger amounts, smaller amounts, and the differences between them. Instead of guessing, students confidently choose the correct approach, using the visual clues in the bar model to guide their thinking. This approach helps students truly understand comparison problems, rather than relying on memorized rules or procedures.
Explicitly Teaching Visual Models in Elementary Classrooms
Visual models are powerful tools for helping students make sense of mathematical concepts, but students often require explicit instruction to use these tools effectively. Without clear guidance, many students naturally gravitate toward overly detailed or literal drawings, which can complicate their understanding rather than simplify it. Teachers, therefore, play an essential role in introducing, modeling, and supporting students’ effective use of visual representations.
Teachers can begin by explicitly modeling how to create visual models step-by-step during instruction. For example, while introducing open number lines or bar models, teachers can use “think-aloud” strategies to clearly demonstrate their thought processes. Narrating each step is a way for teachers to highlight precisely why certain visual models work effectively for particular problem types. Discussing why and how certain types of visual models lend themselves better to some problem types than others helps students see these visuals as valuable problem-solving tools rather than just drawing exercises.
Additionally, providing structured practice opportunities is essential. Initially, teachers can guide students through creating visual models collaboratively, working together on the same problem while sharing their thinking. Gradually, students can move toward independent practice, applying visual models to solve various problems on their own. It’s beneficial for students to regularly share and discuss their visual representations with peers, as this encourages reflection, helps clarify their understanding, and allows teachers to quickly identify and address any misconceptions or misunderstandings.
Finally, integrating ongoing formative assessment is crucial. Teachers can monitor students’ understanding, provide targeted feedback, and reinforce effective strategies by routinely reviewing and discussing student-created visual models. With consistent practice, explicit instruction, and supportive feedback, students become proficient at choosing, creating, and interpreting visual models independently, significantly boosting their mathematical confidence and overall problem-solving skills.
Conclusion: Transforming Learning Through Visual Models
Visual models transform how students approach word problems by clearly showing mathematical relationships and making abstract ideas easier to grasp. When teachers intentionally use and explicitly teach models like number lines and bar models, students develop a deeper understanding of math concepts, enhancing their confidence and flexibility in problem-solving.
Students become skilled at independently selecting and using models that best represent the problems they’re solving when these tools are consistently incorporated into math instruction alongside concrete manipulatives, and structured practice. Regular class discussions further reinforce their understanding and encourage students to think critically about math. Ultimately, visual models help students become more confident, capable mathematicians who can successfully tackle new and challenging math problems.
